Post Packout Station

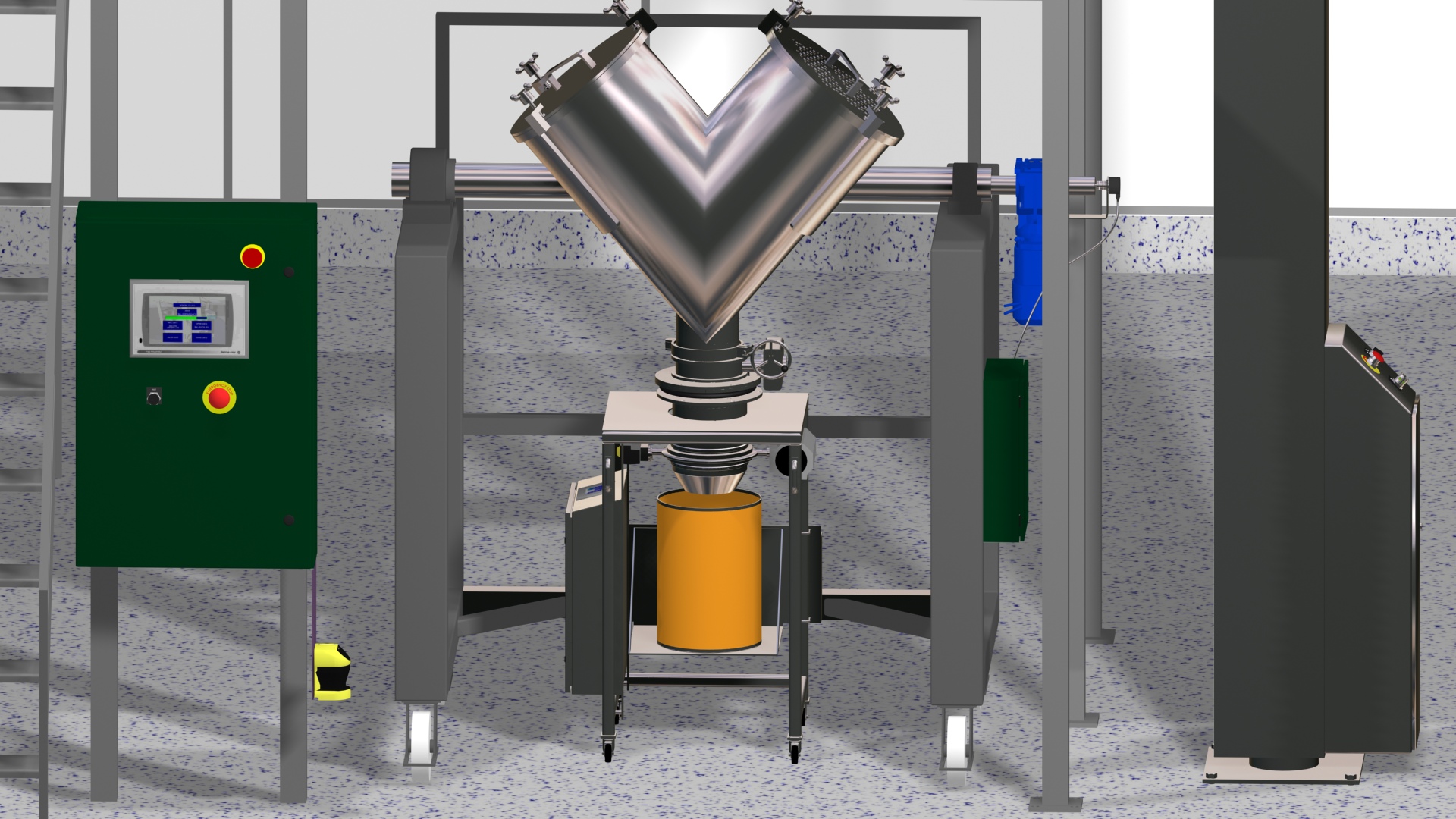

The Post AutoFill system will automatically fill your lined drums, bins or bulk bags to a preset weight. Fill directly from a tumble blender or any style of vessel.
Image Gallery
Applications & Specifications
For filling your lined drums, bins or bulk bags to a preset weight.
Specifications
- Total compliance with GMP standards
- Can be equipped with ramps, gates, and bin lift
- Versatile customization options
- Sanitary stainless steel
- Emergency stop button
- Weight discharge control
The fully automatic filling system runs a fast, coarse dosing cycle until close to the set point, and then switches to fine dosing to achieve an accurate discharge weight.
The filler can be pneumatically clamped in place under the vessel. The mechanical isolator isolates the pressure from the clamp so it does not throw off the scale.
The container liner is tightly held in place to eliminate dusting.
The fill weight is entered on a touch screen operator interface and the start button is pressed to start filling.
The sanitary all Stainless Steel exterior is wash-down and suitable for use in the pharmaceutical industry.
Applications
The Post Packout Station can be used with any material discharge application. This stainless steel sanitary weight filler automatically fills containers to the preset weight. The fill weight is entered on the touch screen, the valve opens, fills the container, and stops at the setpoint. It can be designed to be mobile or stationary. Various accessories can be chosen for the packout station which include control arm, bin lift and inflatable seal.
Repurposing
Post Material Handling Post packout stations may be bought back for repurposing when its original design function is no longer applicable. Repurposing was one of the major design criteria when the Post Packouts were originally conceived.
Repurposing reduces waste, adds reselling value and is the responsible means to recycle equipment.
Virtual Reality Demo
Post Virtual Reality develops proposals and building layouts using state of the art Virtual Reality visualizations.
We will build your layout in 3D and make it available to you using a standard web browser. The same VR environment can be viewed in browser on your desktop or laptop computer, a head mounted display and cell phone.
Post Virtual Reality converts CAD data into 3D presentations. If you do not have 3D CAD data, we will model your equipment and layouts for you.
