Blender Unloading Conveyer
Image Gallery

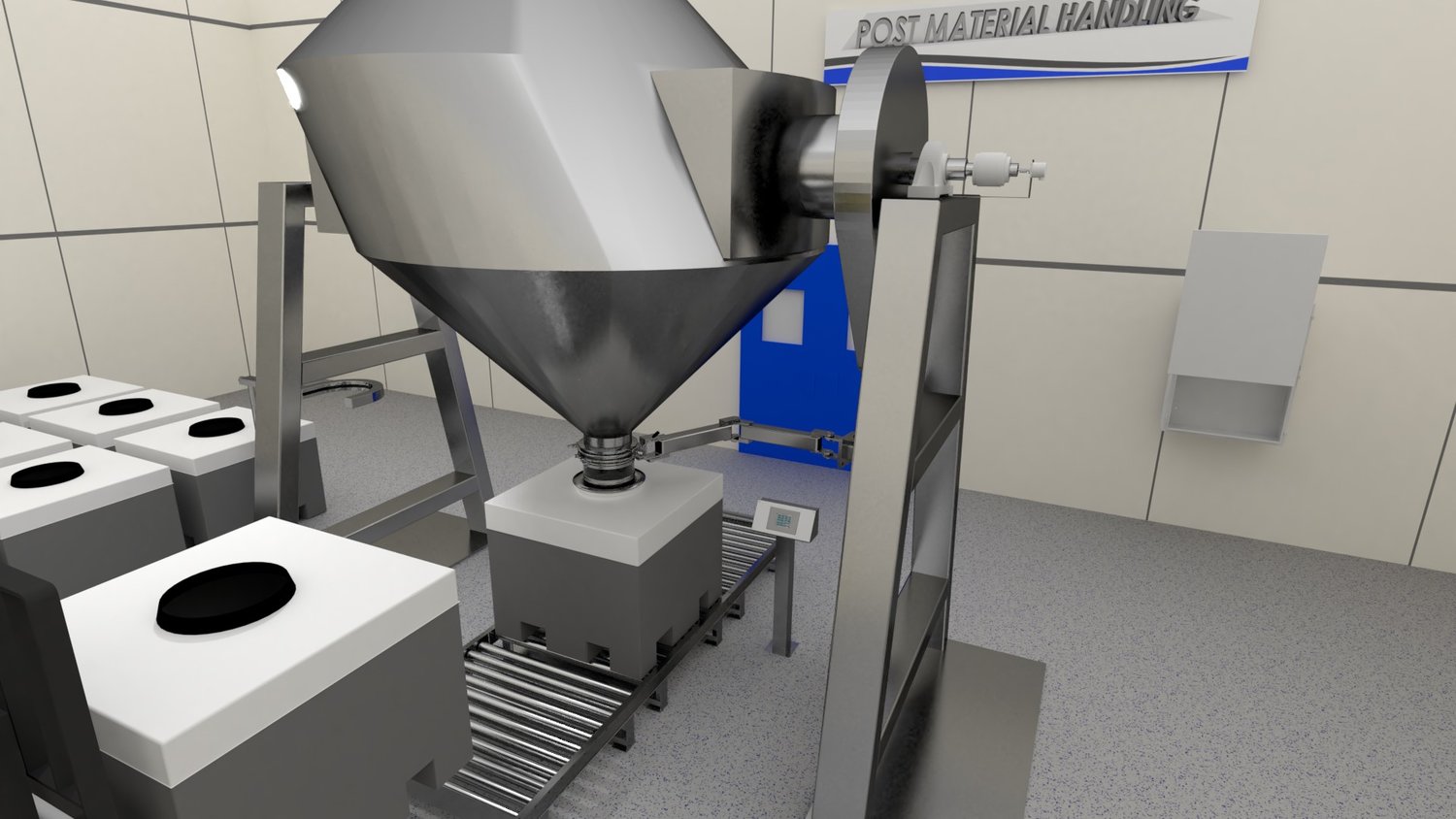

Dust tight connection from a tumble blender to a bin without interfering with a weighing system.
Cutaway view of the bin adapter. shown mounted on a swing arm.
Close up cutaway view of the bin adapter showing the inflatable seal and lower bfm fitting.

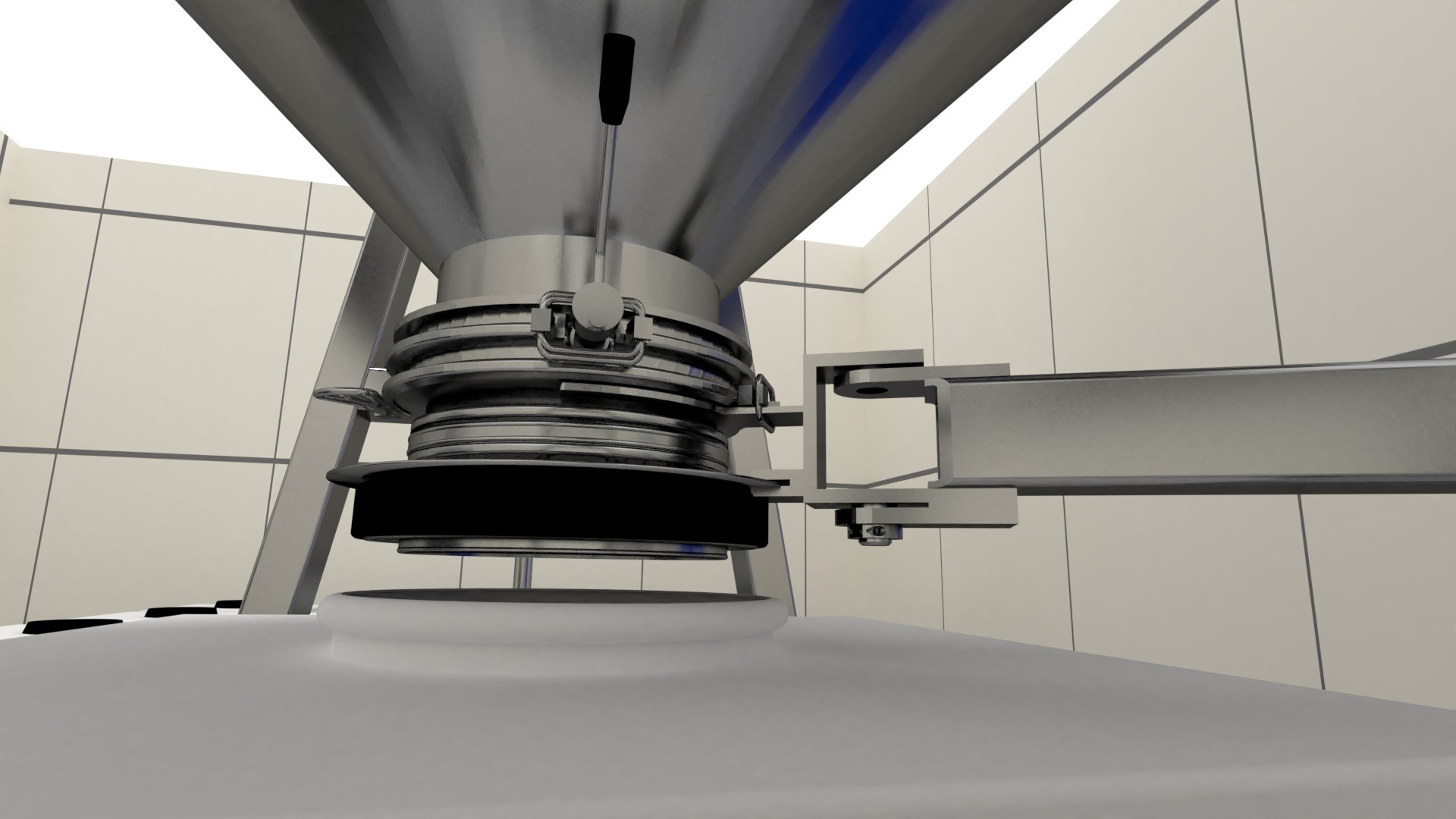

Bin adapter with bfm fittings, inflatable seal and butterfly valve mounting flange.
Cut away view of bin adapter in the deflated state.
Cut away view of bin adapter in the inflated state.
Bin adapter shown in the raised position to allow bins to be easily rolled into place.
Sensor detects when the swing arm is pulled out of the way. the vessel will not rotate with the bin adapter in place.
The safety laser scanner alerts the operator if they approach the blender when it is running and shuts the blender down if they ignore the warning.
Blender discharge weigh conveyor system
Swing arm under blender vessel with dust collector attachment. attachments can be replaced. a sleeve attachment will be put in place of the dust collector ATTACHMENT.
Side view of bin under the blend vessel.
The center section has load cells for weighing and controlled discharge.
An operator interface will display the tare weight in large characters. tare, clear and print functions will also be on this DISPLAY. batch information can potentially be entered on this terminal.
Close up view of the dust collector attachment. various ATTACHMENTS can be place on the swing arm.
Bin stops located at the end of the conveyor sections.
The swing arm has a sensor that will not allow blend vessel rotation unless the arm is pulled away.
